Bio permaculture 04a.3: soil - raised bed - hill bed

1. Garden bed  2. Raised bed  3. Hill bed of permaculture  4. Installation of a hill bed with Sepp Holzer - workshop in Austria (with video)  5. Installation of a hill bed with Bio Garden Kingdom (www.biogartenreich.de) (with Video)  6. Permaculture dam man-high

Raised bed,

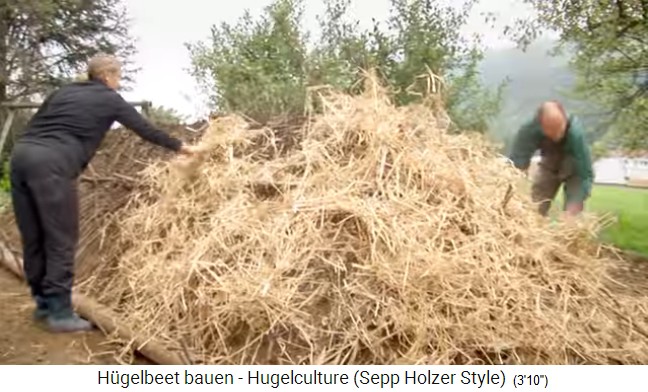

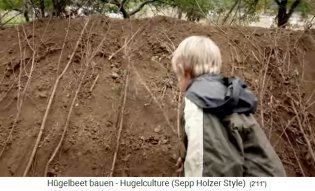

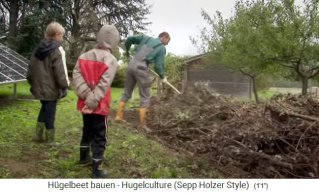

              the layer filling 03   Hillbed workshop with Sepp Holzer in Austria   Construction of a

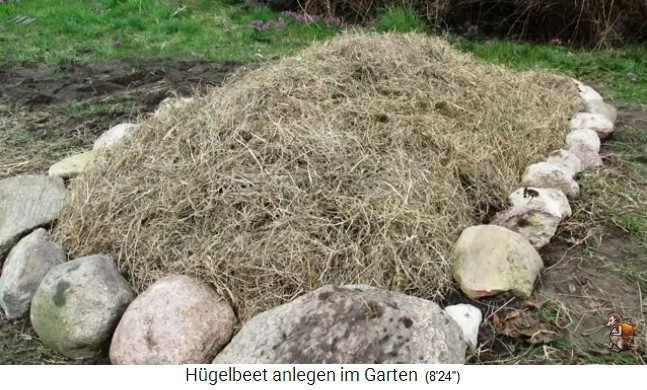

              hill bed with stone rim of Bio Garden Kingdom
              (biogartenreich.de)
Raised bed, the layer filling 03 [27] - Hillbed workshop with Sepp Holzer in Austria [71] - Construction of a hill bed with stone rim of Bio Garden Kingdom (biogartenreich.de) [97]

by Michael Palomino (2018)

Share:

Facebook








Floor tricks with the ground

The earth

Naked soil in the garden, when the bed is empty, is particularly endangered, because rain compacts the bare earth and can wash away the top layer [web01]. In the beginning naked earth is best planted with pioneer plants, whose roots reach down deep leading moisture into the deep layers [web01].


1. Garden bed

Rectangular
                  garden beds  garden division as a
                    mandala, as a mill game, as a board game etc.
Rectangular garden beds [11] - garden division as a mandala, as a mill game, as a board game etc. [21]

Garden beds should never be too large, so one never has to enter, otherwise the soil will be compact and air and waterways in the soil are blocked. Plants grow slower and the vegetables grow less [web26]. A garden bed should be at most 1.2m wide, a light sunny slope is the best position [web38] and should be protected from the wind [web39].

Compost for the garden bed
"The floor is the kitchen of the garden," explains Vynnie. With rich soil, the plants have everything they need for good growth. When essential nutrients are missing, the soil has to be "fed". The simplest remedy is a compost heap [with earthworms]. So one can save the fertilizer from the hardware store [web27].

Forming of garden beds imitating human organs

from Facebook  [web05]

The medicinal plant garden of the University of Münster (North Rhine-Westphalia - Germany): There the garden beds are shaped like human organs: A guided tour was held there in 2015:

   The visit to the
                    medicinal plant garden in Münster, title page:
                    Medicinal plant garden of the Institute for
                    Pharmaceutical Biology and Phytochemistry of the

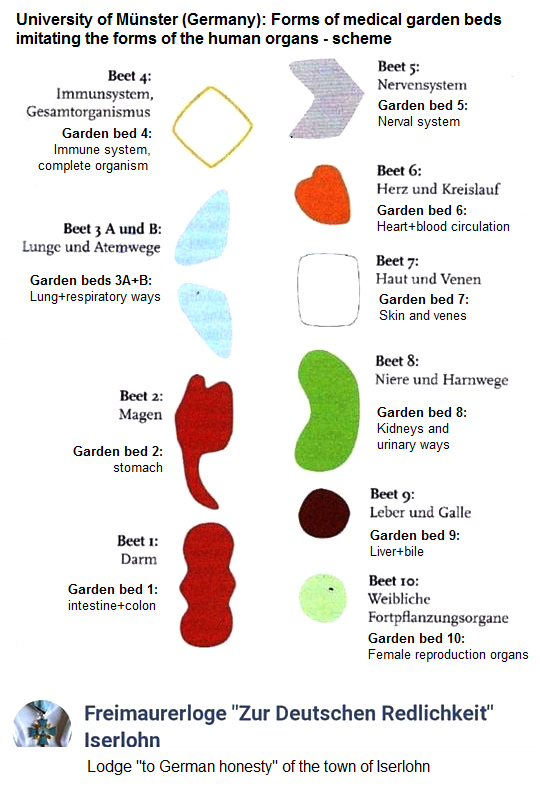

                    Westphalian Wilhelms University of Münster   Garden beds in the
                    form of human organs 03: The garden beds, graphics
The visit to the medicinal plant garden in Münster, title page: Medicinal plant garden of the Institute for Pharmaceutical Biology and Phytochemistry of the Westphalian Wilhelms University of Münster (FRG) [100] - Garden beds in the form of human organs 03: The garden beds graphics [101]



2. The raised bed

Here are elements of permaculture. The soil is specifically layered. First of all there are different forms:

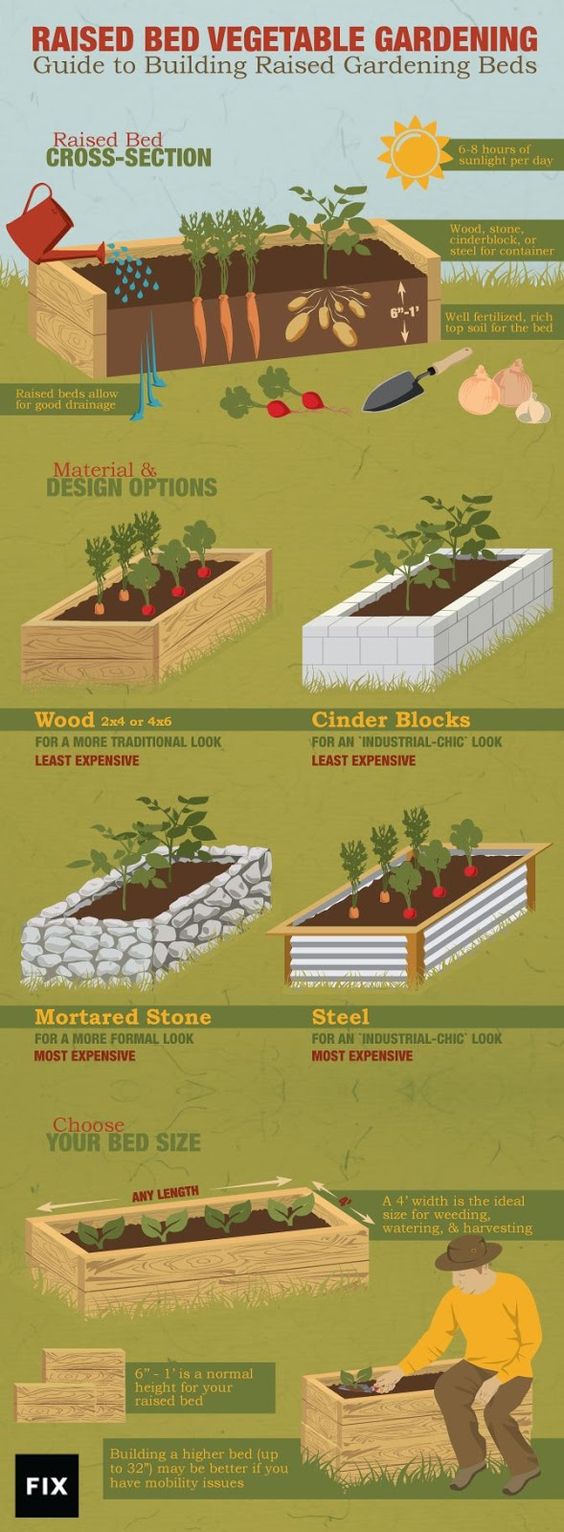

Raised beds of wood,
                  ashlar blocks, natural stone with mortar, steel   raised bed with natural border:
                  tree trunk, mesh, boards  raised beds
                  with tree trunks
Raised beds of wood, ashlar blocks, natural stone with mortar, steel [13] - raised bed with natural border: tree trunk, mesh, boards [18] - raised beds with tree trunks [24]

The new horticulture is installing more and more raised beds or converting lawns into raised beds, in various forms. The best seems the long, rectangular shape, or the U-shape. Doubling the bed comes out like a chunky M-shape, or one can also install swinging wave beds, with gemoetric figures or mosaic pictures, etc.

Forms of raised beds
Garden bed, raised beds in all forms
Garden bed, raised beds in all forms [1]
U-shaped
                          raised bed
U-shaped raised bed [2]
Raised bed in U-shape still
                          undeveloped   raised bed in U-shape with
                          protective net
Raised bed in U-shape still undeveloped [5] - raised bed in U-shape with protective net [6]
Raised bed
                          rectangular with "entrance"
Raised bed rectangular with "entrance" [15]
Raised bed in double U, thus M-shape
Raised bed in double U, thus M-shape [3]
Raised beds: rectangle with 4 Ms
  Raised beds: rectangle with 4 Ms [16]
U-shaped raised bed with door
                          and windscreen
U-shaped raised bed with door and windscreen [17]
Long
                          raised beds waist high
  Long raised beds waist high [20]


Cultivation zone
                          in a pentagon with a hexagon in the center
Cultivation zone in a pentagon with a hexagon in the center [8]
Garden in the form of a mandala garden
                          with raised beds in the form of rhomboids and
                          triangles with a fountain in the middle
Garden in the form of a mandala garden with raised beds in the form of rhomboids and triangles with a fountain in the middle  [22]
Square cultivation zone with
                          raised beds with 4 triangles and 4 long
                          rectangles on the edges
Square cultivation zone with raised beds with 4 triangles and 4 long rectangles on the edges [4]
Raised
                            beds 4 triangles
Raised beds 4 triangles [10]
Cultivation area
                          with raised beds, in the center a six-star
Cultivation area with raised beds, in the center a six-star [34]
Raised bed with pallets, pallet high
                          bed  raised bed with
                          pallets, pallet raised bed under construction
Raised bed with pallets, pallet high bed [35] - raised bed with pallets, pallet raised bed under construction [36]
Raised beds in form of an L in steps
Raised beds in form of an L in steps [28]
Round
                          bed with wickerwork
Round bed with wickerwork [9]
Raised bed
                          pyramid
Raised bed pyramid [23]
Herb garden
                          spiral
Herb garden spiral [12]
   Raised bed with greenhouse cover
Raised bed with greenhouse cover [33]
Raised bed circular with different sized
                          circles small, medium, large
Raised bed circular with different sized circles small, medium, large [37]
Raised bed in form of waves
Raised bed in form of waves [31]





The basic requirement for a fertile raised bed is the direct contact with the ground, otherwise no earthworms will come, or one has to add the earthworms by hand to the raised bed.

One can also put a perforated compost bin in the bed [web02]:
Raised bed in U-shape with
                    integrated compost bin with holes
Raised bed in U-shape with integrated compost bin with holes [7]


The filling of the raised bed is an art: The layered raised bed becomes warm and moist (!)

The stratification in the raised bed is original permaculture. The layers are like a permaculture hillbed. The common parlance calls it "lasagna stratification". A rake is a great help. In principle, a
-- Layering from coarse to fine: The layers develop from coarse (below) to fine (on the top) [web03], but there is also dung and compost in the "filling":

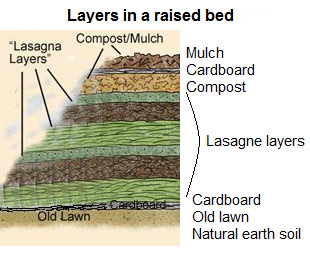

A raised
                  bed filling with rake   a raised bed, the earth layers
                    (lasagna stratification)  a
                    raised bed, the layer filling 02
A raised bed filling with rake [19] - a raised bed, the earth layers (lasagna stratification) [25] - a raised bed, the layer filling 02 [26]

A raised bed can be layered very differently, mostly there are 4 layers, each 5 to 25cm high [web03].

Example:
Layer 1: tree trunks, branches, twigs, shrub sections, tree sections (they must have dried for at least 1 year [web32]) for ventilation from below, press firmly, then: a) bark mulch or leaves on top of it, press down - or b) press grass cut, straw or unprinted cardboard on top, press it well [web03]
Layer 2: Mix manure or manure with half-ripe compost, put it on top [web03]
Layer 3: Mix garden soil with compost and put it on top [web03]
Layer 4: Apply high-quality garden soil and place ripe compost on it [ripe compost ist fresh garden earth] [web03].

This is just one of many variants of permaculture stratification.

This permaculture stratification causes "heat" in the raised bed: the compost and manure material is "degraded", which generates heat, so that the bed is warmer than the environment. And in the end, the wood and the logs at the bottom are also degraded. The degradation of the wood takes about 3 (branches) to 6 years (tree trunks). The raised bed will be as warm as a small compost heap. This also prolongs the growing season. In addition, the wood in the bed is a water reservoir, the wood is soaked with water and is the water reserve for dry periods: Even in drought times, the plants grow well when the roots reach the humid wood:
-- Higher temperature in the raised bed: The compost, the manure and the wood parts in the raised bed provoke a higher temperature due to the degradation of these layers - at around 5 to 8ºC [web04]
-- Extended cultivation time in autumn: Due to the higher temperature, the growing time in autumn is extended [web04]
-- The wood in the raised bed is soaked up with water like a sponge and is the water reserve for drought [web33 - 3'51 '' to 4'11 ''] respectively during a drought the wood releases its water to the soil, the earth remains moist and the plants continue to grow well [web36]
-- When the roots of the plants reach the moist wood, there is no need to give water any more, even during periods of drought [web33 - 3'51 '' to 4'11 '']
-- Mouse wire: The bottom and the inner sides should be designed against rodents (voles etc.) with mouse wire or chicken wire [web03] - natural enemies are present in an intact ecosystem against mice: Western / Eastern Emerald Lizard, smooth snake, Aesculapian snake, hedgehog, mouse weasel, mole.
-- Height of the raised bed: For potatoes already 30cm of height are enough, with strawberries it should be 1m [?] [web03]
-- All these factors give about 4x more profit per m2 than a "normal" planting bed on the garden's ground being worked with machinery, fertilizers and pesticides
-- In a raised bed one does not have to bend down anymore
-- Frost protection in autumn: raised beds can be covered with jute bags [web24].

Different layering options for a "hot" raised bed according to permaculture
..
Raised bed, the
                              layer filling 03: 1) Wood / chaffed wood -
                              2) Grass sods (upturned pieces of grass
                              pasture / lawn) - 3) leaves - 4) manure,
                              half ripe compost - 5) garden soil mixed
                              with ripe compost [fresh compost soil]
Raised bed, the layer filling 03: 1) Wood / chaffed wood (they must have dried for at least 1 year [web32]) - 2) Grass sods (upturned pieces of grass pasture / lawn) - 3) leaves - 4) manure, half ripe compost - 5) garden soil mixed with ripe compost [fresh compost soil] [27]

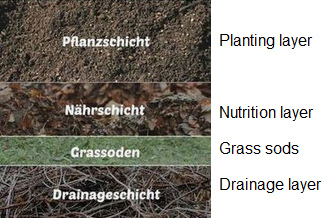

Raised bed, the layer
                              filling 04: drainage layer - sods
                              (upturned pieces of grass pasture / lawn)
                              - nutrient layer - planting layer
Raised bed, the layer filling 04: drainage layer with wood material (must have dried for at least 1 year [web32])- sods (upturned pieces of grass pasture / lawn) - nutrient layer - planting layer [28]

Raised bed, the layers filling 05:
                              Tree and shrub pieces, green waste, garden
                              soil, mature compost, potting soil
Raised bed, the layers filling 05: Tree and shrub pieces (they must have dried for at least 1 year [web32]), green waste, garden soil, mature compost, potting soil [30]

Raised bed, layer filling 06 with
                                  wire mesh and black film - 1)
                                  brushwood - 2) grass sods (upturned
                                  pieces of grass pasture / lawn) - 3)
                                  raw compost - 4) mature compost
Raised bed, layer filling 06 with wire mesh and black film - 1) brushwood (must have dried for at least 1 year [web32]) - 2) grass sods (upturned pieces of grass pasture / lawn) - 3) raw compost - 4) mature compost [32]





You can work very well with these warm and always moist raised beds. In addition, hardly any snails or slugs come in the raised beds. But:
-- the raised beds cost quite a bit in part
-- the raised beds also delimit the positive soil animals from the bed.

Plants of warm climates in the permaculture bed during the first years

The web site of Bio Garden Kingdom (German: Biogartenreich) also says: A hillbed is warm ("heated") by the decomposition processes of compost, manure, leaves and wood. Microorganisms, woodlice and compost worms perform this degradation process. The hillbed is predestined for heat-loving plants in the early days, thus: melon, pumpkin, peppers and tomatoes grow very well [web36].

Permaculture makes this much cheaper with hillbeds, but the ecosystem has to be intact with all beneficials:


3. The hillbed of permaculture

Permaculture garden, beds in a
                          waving design
Permaculture garden, beds in a waving design [38]
Hillbed 01
Hillbed 01 [39]
Hillbed 02
Hillbed 02 [40]

Permaculture hillbeds
                          ending in a mandala circle bed
Permaculture hillbeds ending in a mandala circle bed [47]
Hillbeds forming a mandala,
                            permaculture farm of Le Bec Hellouin in
                            France
Hillbeds forming a mandala, permaculture farm of Le Bec Hellouin in France [99]


The tricks with the hillbed

Permaculture arranges hillbeds,
-- Hillbeds have about 50% to 100% MORE surface and planting area than a flat bed
-- The roots of the plants always remain in the bed, so that the nutrients concentrate by about 20% to 50% MORE than in the raised bed
-- Nutrients are released through the chemical reaction between compost + soil and wood + soil - fertilizer is NEVER necesary, depending on the wood content of the bed 3 to 6 years
-- The hill bed is warmed up by the chemical reactions (decomposition process) between compost + earth (with earthworms), foliage + soil, wood and earth all this provokes a WARMTH inside - 5 to 8ºC warmer than normal [web04]
-- The growing season in the autumn is prolonged as in the raised bed [web04]
-- The wood in the hillbed (must have dried for at least 1 year [web32]) is soaked up with water and becomes the source of water for the plants in dry periods [web33 - 3'51 '' to 4'11 ''] respectively during a drought the wood releases its water to the soil [ web36]
-- Mulch or dense planting prevents weeds
-- The soil animals can visit the bed and "clean up" there - snails, slugs and mice have no chance if the ecosystem is intact (hedgehogs, snakes, mouse weasels and moles eat mice - slow-moving, alpine salamander and ducks, etc. eat snails and slugs).

Snails are eaten by: alpine salamander, western and eastern emerald lizard, forest lizard, hedgehog, toads (common toad, toad toad), wolf spider and others.
Slugs are eaten by: Alpine salamander, slow-worm, ducks and others.
Animals that eat mice and young mice: mouse weasel, mole, snake, Aeskulapian rat snake etc.
Animals that eat only young mice: hedgehog, Western and Eastern Emerald Lizard, young Aesculapian snake, etc.

The plants in the hillbeds thus benefit from an intact ecosystem
-- nutrients in the hillbed (no fertilization necessary)
-- from the heat in the hillbed (like in a compost heap)
-- from the ever damp wood in the hillside (therefore dry times are NOT a problem, you do not have to give water)
-- and a hillbed is 50% to 100% larger than a flat bed

And hillbeds have even more special features:
-- More sun: a hill bed reaches partially higher solar radiation than the flat raised bed or a flat bed on the ground [web04]
-- Rainwater runs by itself: rainwater is absorbed by the mulch and runs slowly on the hillside down, causing no erosion and no puddles in the planting area, this promotes many plants that would otherwise not survive the steady rain - on the crown a little pan is installed so that the rainwater is stored dripping the earth of the hillbed from the top [web04]

The planting of the permaculture hillbed

The planting of hillbeds can be very different.

The planting is different depending on the sunlight [web04]. In the first two years no vegetables are to be planted, which absorb a lot of nitrate. After a maximum of 6 years the hill bed has to be renewed [web04].

First years in permaculture beds: plant heat plants

The web site Bio Garden Kingdom (German: Biogartenreich) also says: A hillside is warm ("heated") by the decomposition processes of compost, manure, leaves and wood. Microorganisms, woodlice and compost worms perform this degradation process. The hillbed in the early time is predestined for heat-loving plants, so: melon, pumpkin, peppers and tomatoes grow very well [web36].

And now comes the positive profit warning:

All of these factors in a permaculture hillbed (hillpatch) give 3 to 4 times more vegetables per m2 per year than for the expensive machine pesticide agriculture [web34], and up to 10x higher profits (50 ¤ / m2) than for machine pesticide farming (5 ¤ / m2), because all the costs for machinery, pesticides and fertilizer are gone, one just needs more people working simple agriculture work there with their hand to cultivate the hillbeds (hillpatches - as indicated by the permaculture farm in Le Bec, France [web35]).

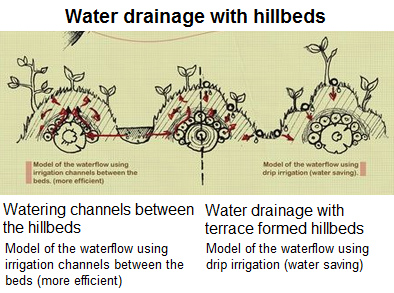

Arrange hillside beds next to each other

Building several hillside beds next to each other, irrigation channels are formed during raining, so that the accumulated rainwater slowly wets almost the entire hillside area [web31]:

Arrange hillside beds side by side - rainwater accumulates and seeps / trickles away
The
                            watercourse in the hillbed with collecting
                            channel and terraces
The watercourse in the hillbed with collecting channel and terraces [46]
Permaculture hillbeds end in
                          a circular mandala bed
Permaculture hillbeds end in a circular mandala bed [47]
Hillbeds arranged
                            side by side as a ray mandala, permaculture
                            farm of Le Bec Hellouin, France
Hillbeds arranged side by side as a ray mandala, permaculture farm of Le Bec Hellouin, France [99]


The construction of a hillbed (hillpatch)
-- About 1.8m wide
-- The construction in the north-south axis is best for solar irradiation [or west-east axis for sun plants and shade plants]
-- One should place a fine-mesh wire net against rodents (voles)
[-- keep the ecosystem intact so that all beneficial animals are available against mice, snails and slugs]
and then the stratification comes as in the raised bed: All layers must be well set, so that no cavities remain:

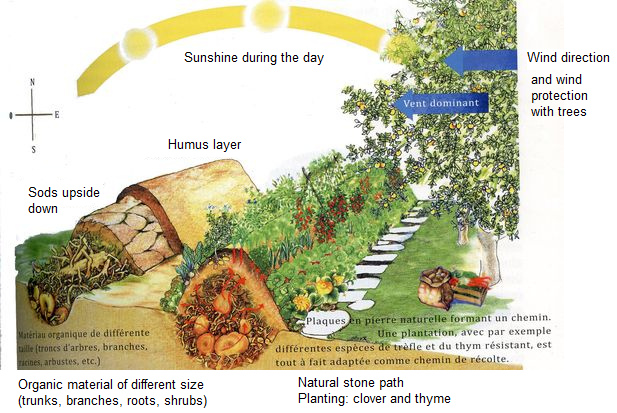

Construction of a permaculture hillbed - variations

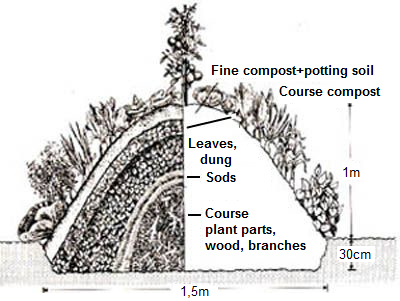

Layering of the permaculture hillbed
                            1   Layering of the permaculture hillbed
                            2
Layering of the permaculture hillbed 1,2 [41,42]
1) Wood layer 50cm (must have dried for at least 1 year [web32])
-- possibility a) high layer of wood with twigs or chaffed material (so the bed is warmed up for 3 years), the bed gets dry quickly - press all firmly [with logs in it the bed it will be warm for about 6 years]
-- possibility b) Perennial cut or hedge trimming (gives only 2 years of heat), the bed dries less quickly - good grip

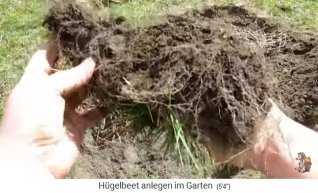

2a) Put grass sods [upturned pieces of grass pasture / lawn] upside down, approx. 10cm high - press all firmly walking on it
2b) put a layer with wet leaves 25cm high - press all firmly walking on it
3) The wet leaf layer is covered with 15cm of compost - press all firmly walking on it
4) Now come 15cm of good garden soil on it [ripe compost which is fresh earth soil] [web04].

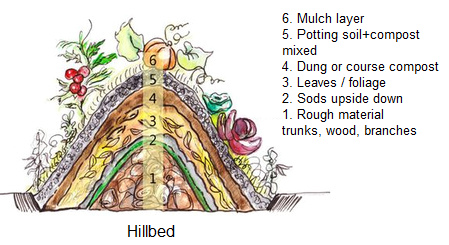

Layering of permaculture
                          hillbed variation 03
Layering of permaculture hillbed variation 03 [43]

5) Garden soil mixed with compost soil, and on the top a pan is installed for rain water dripping into the hillbed

4) manure or coarse compost

3) leaf layer

2) Grass sods (upturned pieces of grass meadow / lawn)

1) Coarse wood material (trunks, wood, branches)
(they must have dried for at least 1 year [web32])

Layering of permaculture
                            hillbed variation 04
Layering of permaculture hillbed variation 04 [44]

The hilly bed on this pattern is built in a north-south direction and receives first the heat from one side of the rising sun, then on the other side the heat from the setting sun. The stratification:

Humus layer (the pan on the top is is missing on the scheme)

Manure or coarse compost

Leaves / foilage

Grass sods (upturned pieces of grass meadow / lawn)

Coarse wood material (tree trunks, wood, branches)
(they must have dried for at least 1 year [web32])



NO watering on the hillbed (hillpatch): The wood sucks water + under the mulch moisture is forming

When the hillbed is mulched (see the chapter about mulching), and when there is wood in the hillbed that soaks up water like a sponge, and when the roots of the plants can reach the humid wood, you do not need to give water, but moisture is formed under the mulch and the plants can choke water from the humid wood with their roots [web36].

On the ridge a pan is installed so that the rainwater seeps and trickles into the interior, otherwise all water "runs down the slope" [web04].

[When mulched, the mulch also holds up the water. If not mulched and without pan on the top], all water runs down "the slope" and takes the earth with it  by erosion [web04].


The soil improves with a hill bed in general

After several years, the hill bed sinks, because the compost and the wood are then completely degraded and converted to new humus which needs less volume [web36]. If at the beginning only chaffed wood was placed in the hillside, the degradation process takes perhaps 1 to 2 years, when many branches were integrated, 2 to 3 years, when whole tree trunks are in the hillbed, 5 to 6 years.

After the degrading process, the hillside is then no longer warm, but the earth is high-quality compost soil [web36]. Every 2 to 6 years, depending on whether there are only branches or whole trunks in the hill bed inside, one has to renew a hillbed (hillpatch).


4. The hillbed of Sepp Holzer - a workshop in Austria (with Video)

Video: Install a hillbed - hillbed culture (Sepp Holzer Style) (3'25'')
(original German: Hügelbeet bauen - Hugelculture (Sepp Holzer Style) (3'25'')

Video: Install a hillbed - hillbed culture (Sepp Holzer Style) (3'25'') [web32]
https://www.youtube.com/watch?v=1KafYj_AcVs&t=30s - YouTube channel: TrilightShowroom

Sepp Holzer is installing the layers of his hillbed in this workshop installing 6 layers + straw mulch:
-- Coarse deadwood (which has dried for at least 1 year)
-- Grass sods (grassy soil put upside down)
-- Dead wood with dead leaves on it (which has dried for at least 1 year)
-- Earth
-- Attachment with a net of branches (dead branches)
-- Mull layer (on the top sandy earth?)
-- Sowing action
-- Straw mulch (on the whole bed) [web32].

Hill bed workshop with Sepp Holzer

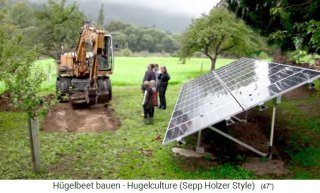

                  in Austria 01, the sign   Hill bed workshop
                    with Sepp Holzer in Austria 02, the sward is
                    removed   Hill bed workshop

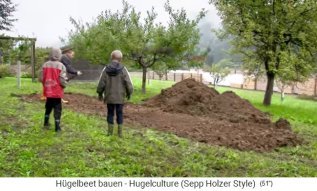

                    with Sepp Holzer in Austria 03, the surface is
                    prepared
Hill bed workshop with Sepp Holzer in Austria 01, the sign [52] - 02, the sward is removed [53] - 03, the surface is prepared [54]
Hill bed workshop with Sepp Holzer in Austria
                    04, wood material is laid on top (first layer)   Hill bed workshop
                    with Sepp Holzer in Austria 05, humus of the sod is
                    laid on the wood material upside down (second
                    layer)   Hill bed workshop
                    with Sepp Holzer in Austria 06, humus of the sod is
                    laid on the wood material upside down (second
                    layer)
Hill bed workshop with Sepp Holzer in Austria 04, wood material is laid on top (first layer) (must have dried at least during 1 year) [55] - 05 + 06, humus of the sod is laid on the wood material upside down (second layer) [56,57]
Hill bed workshop with Sepp
                    Holzer in Austria 07: On the sods wood material with
                    leaves is put now (third layer)   Hill bed workshop with Sepp Holzer in Austria
                    08: With some branches wood nails are cut 01   Hill bed workshop with Sepp Holzer in Austria
                    09: With some branches wood nails are cut 02
Hill bed workshop with Sepp Holzer in Austria 07: On the sods wood material with leaves is put now (third layer) [58] - 08+09: With some branches wood nails are cut 01,02 [59,60]
Hillbed workshop with
                    Sepp Holzer in Austria 10: Children hopping on the
                    hillside to secure it so that no cavities remain   Hillbed workshop with Sepp Holzer in
                    Austria 11: The excavator rattles on the bed crate
                    so that the earth falls through the branches and no
                    cavities remain   Hillbed workshop with Sepp Holzer in
                    Austria 12: Now comes the last layer of earth
                    (fourth layer)
Hillbed workshop with Sepp Holzer in Austria 10: Children hopping on the hillside to secure it so that no cavities remain [61] - 11: The excavator rattles on the bed crate so that the earth falls through the branches and no cavities remain [62] - 12: Now comes the last layer of earth (fourth layer) [63]

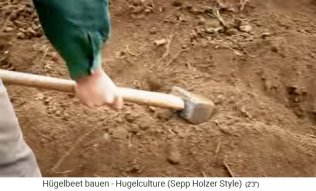

Hill bed workshop with Sepp Holzer in Austria
                    13: The earth layer is pushed with a big hammer
                    filling all the holes between the branches   Hill bed
                    workshop with Sepp Holzer in Austria 14a: The hill
                    bed is ensured with a branch net 01: Vertically

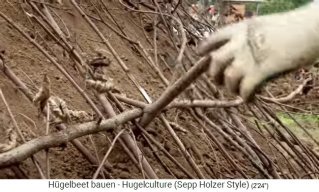

                    placed, straight branches   Hill bed workshop
                    with Sepp Holzer in Austria 14b: Long strong
                    branches are placed horizontally and are fixed with
                    wooden nails at "intersections"
Hill bed workshop with Sepp Holzer in Austria 13: The earth layer is pushed with a big hammer filling all the holes between the branches [64] - 14a: The hill bed is ensured with a branch net 01: Vertically placed, straight branches [65] - 02: Long strong branches are placed horizontally and are fixed with wooden nails at "intersections" [66]

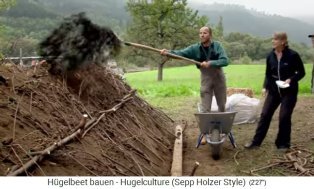

Hillbed workshop with Sepp Holzer in Austria
                    15: Now comes a layer of mulch on top of it   Hillbed workshop with
                    Sepp Holzer in Austria 16: Garlic is planted   Hillbed workshop with Sepp Holzer in
                    Austria 17: The seed mixture is "mixed"
                    with some soil
Hillbed workshop with Sepp Holzer in Austria 15: Now comes a layer of mulch on top of it [67] - 16: Garlic is planted [68] - 17: The seed mixture is "mixed" with some soil [69]
Hillbed workshop
                    with Sepp Holzer in Austria 18: The seed mixture is
                    sown   Hillbed workshop with Sepp
                    Holzer in Austria 19: straw mulch is laid for
                    protection and repeated nutrient enrichment   Hillbed workshop with
                    Sepp Holzer in Austria 20: straw mulch is laid for
                    protection and repeated nutrient enrichment 02
Hillbed workshop with Sepp Holzer in Austria 18: The seed mixture is sown [70] - 19+20: straw mulch is laid for protection and repeated nutrient enrichment [71,72]

Every branch in the bed releases nutrients. As a limitation, tree trunks were laid on the flor on the long side.
Hillbed workshop with Sepp
                  Holzer, the logo of www.permavitae.org
Hillbed workshop with Sepp Holzer, the logo of www.permavitae.org

Here is another video where Sepp Holzer shows his hillbed tecnique in the "USA":

Sepp Holzer Style hillbed in Washington ("USA"): https://www.youtube.com/watch?v=Sso4UWObxXg



5. The hillbed (hillpatch) of Bio Garden Kingdom (www.biogartenreich.de - with Video)

Video: Install a hillbed in the garden (8'56'')
(original German: Hügelbeet anlegen im Garten)

Video: Install a hillbed in the garden (8'56'') [web33]
https://www.youtube.com/watch?v=_-egIPX6AjU&t=15s  - YouTube channel: Bio-Garten Reich

The family which has the web site Bio Garden Kingdom (www.biogartenreich.de) installs a hillbed like this:
-- First the sod is taken away and is put aside
-- Then a pit is made and the earth is put aside
-- Then deadwood (tree waste from the previous year) is put into the pit
-- Then the grass sods are installed upside down
-- Foliage
-- Dung / manure
-- Foliage
-- The soil from the pit is mixed with compost earth and is put on the foilage
-- Straw mulch
-- The plantings are made directly through the mulch [web33].

The movie protocol:

The hillbed is created at the beginning of April on the north-south axis (49 ''). For example, the vegetables on the hillside have the maximum amount of sunshine or all parts roughly equal (1'3 ''). The hillbed is staked out and then the sward is carefully removed (1'28 ''). It takes 30 minutes by hand (2'12 ''). [web33]

Construction of a
                    hillbed at Biogartenreich 01: The sward is removed   Construction of a
                    hillbed at Biogartenreich 02: the sward is removed   Construction of
                    a hillbed at Biogartenreich 03: the pit is deep
                    excavated
Construction of a hillbed at Biogartenreich 01: The sward is removed [74] - 02: the sward is removed [75] - 03: the pit is deep excavated [76]

Then the topmost layer of earth is removed. This earth is piled up on the side for the topmost hillside layer (2'35 '').

Construction of a hillbed at
                    Biogartenreich 04: Now comes the deadwood from
                    branch cuts from the previous year   Construction of a hillbed at Biogartenreich 05:

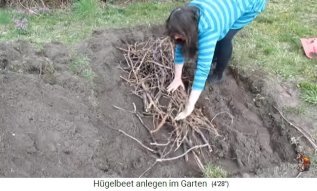

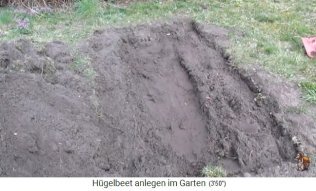

                    The pit has been completely excavated   Construction
                    of a hillbed at Biogartenreich 06: The deadwood is
                    laid out 01
Construction of a hillbed at Biogartenreich 04: Now comes the deadwood from branch cuts from the previous year [77] - 05: The pit has been completely excavated [78] - 06: The deadwood is laid out 01 [79]

For complete safety or when the ecosystem is not intact, a mole lattice can be installed in the pit against voles and moles [web36].

Then it is the deadwood's turn, e.g. with tree cuts from the year before (2'55 ''). It must be easy to break and must have no bud approaches (3'14 ''). Because if using fresh branches for the hillbed, which still have buds, it may be that the buds sprout and trees will grow in the hillside (3'41 ''). Then the deadwood is put into the pit (3'51 ''). The wood absorbs water like a sponge and acts like a water reservoir. Long roots can reach the damp wood even in dry seasons, so that they can pull up water even when dry (4'11 ''). After the wood layer, the upturned tufts of grass come now being put on the wood, with the grassy side downwards, so that it does not grow again (5'11 ''). [Web33]

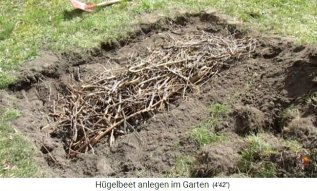

Construction of a hillbed at
                    Biogartenreich 07: The deadwood is laid up 02 and

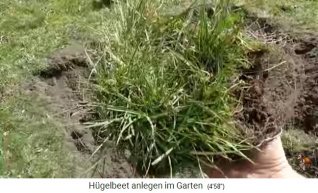

                    now fills the pit   Construction
                    of a hillbed at Biogartenreich 08: Now the grass
                    tufts (grass scraps, grass sods) are laid upside
                    down on the wood   Construction of a hillbed at Biogartenreich 09:
                    Turned-over grass tufts (grass scraps, sod)
Construction of a hillbed at Biogartenreich 07: The deadwood is laid up 02 and now fills the pit [80] - 08: Now the grass tufts (grass scraps, grass sods) are laid upside down on the wood [81] - 09: Turned-over grass tufts (grass scraps, sod)
Construction of a hillbed at
                    Biogartenreich 10: The tufts of grass (sods) are
                    placed upside down on the wood layer   Construction of a hillbed
                    at Biogartenreich 11: The layer with the upturned
                    tufts of grass (turf) is complete
Construction of a hillbed at Biogartenreich 10: The tufts of grass (sods) are placed upside down on the wood layer [83] - 11: The layer with the upturned tufts of grass (turf) is complete [84] -

The next layer is of leaves and dung (5'27 ''). And then leaves again (6'0 '').

Construction of a flower bed at
                    Biogartenreich 13: The first layer of leaves is
                    spread out  Construction of a flower bed at Biogartenreich
                    14: Then follows a layer of manure   Construction of a flower bed at Biogartenreich
                    15: And then another layer of leaves
Construction of a flower bed at Biogartenreich 13: The first layer of leaves is spread out [85] - 14: Then follows a layer of manure [86] - 15: And then another layer of leaves [87]

The nutrient layer for the plants is formed with: leaves layer - dung layer (cow or horse manure) - and again one leaves layer. Instead of manure, one can also take coarse, unripe compost. Microorganisms, bacteria and fungi convert this nutrient layer into humus soil, a prime soil for vegetables [web36].

Then it's the turn of the earth which was taken out of the pit: this earth is mixed with compost earth now and put on the hillbed (6'30'').

Building a hillbed at Biogartenreich
                    16: Now it's the turn of the earth which was taken
                    out of the pit   Building a
                    hillbed at Biogartenreich 17: Soil earth + compost
                    earth are mixed 01   Building a
                    hillbed at Biogartenreich 18: Soil earth + compost
                    earth are mixed 02
Building a hillbed at Biogartenreich 16: Now it's the turn of the earth which was taken out of the pit [88] - 17 + 18: Soil earth + compost earth are mixed 01,02 [89,90]
Construction of a hill bed at Biogartenreich
                    19: soil + compost soil are mixed 03   Construction of a hill bed at
                    Biogartenreich 20: soil earth + compost soil mixture

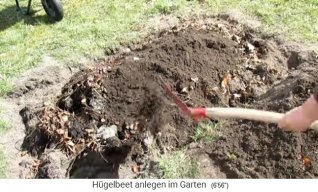

                    is put on the hill bed 1   Construction of a hill bed at
                    Biogartenreich 21: soil earth + compost soil mixture
                    is put on the hill bed 02
Construction of a hill bed at Biogartenreich 19: soil + compost soil are mixed 03 [91] - 20 + 21: soil earth + compost soil mixture is put on the hill bed 1,2 [92,93]

The earth is not tamped, because on loose soil the plants grow better [web36]. As last layer a layer of straw mulch comes on it (7'45 '') [web36]. Installing the hillbed in summer, one can also use grass clippings as mulch. The mulch protects against erosion by wind and rain [web36].

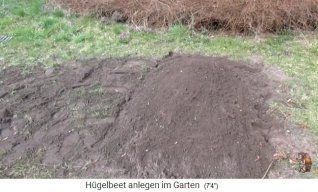

Construction of a
                    hillbed near Biogartenreich 22: The mixture of soil
                    earth and compost earth is applied on the bed 03   Construction of a

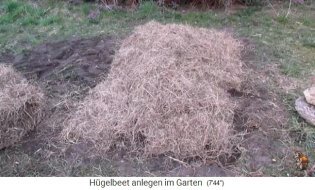

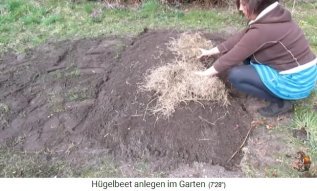

                    hillbed near Biogartenreich 23: Straw mulch on it 1   Construction of a
                    hillbed near Biogartenreich 24: Straw mulch on it
                    02
Construction of a hillbed near Biogartenreich 22: The mixture of soil earth and compost earth is applied on the bed 03 [94] - 23 + 24: Straw mulch on it 1,2 [95,96]
Construction of a hill
                    bed at Biogartenreich 25: with a stone rim 1   Construction of a hill
                    bed at Biogartenreich 26: with a stone rim 2
Construction of a hill bed at Biogartenreich 25 + 26: with a stone rim 1,2 [97,98]

As a rim stones are laid so that the sward does not grow in the bed, and to protect the hillbed from wild herbs, therefore also the mulch layer is put. Later the plantation will be performed penetrating the mulch layer directly (8'1 ''). The bed is now full of nutrients. In the first year, one should plant strong-consuming plants, e.g. pumpkin plants (8'20 ''). Hill beds can be built in all shapes, ie up to 2 meters high, with real tree trunks in them (8'48 ''). One can also install a spiral hillside etc. (8'54 ''). [Web33]


6. The man-sized permaculture dam

Vegetable beds as dikes multiply the surface. The roots remain inside stabilizing the dike.

Permaculture
                  dam, graphics   Such transverse dams were erected in China in
                    1995 on the Loess plateau on large terraces   Such transverse dams were erected in China
                    in 1995 on the Loess plateau on large terraces,
                    close up
Permaculture dam, graphics [45] - Such transverse dams were erected in China in 1995 on the Loess plateau on large terraces [48] - close up [49]
China
                    Loess plateau, large terraces with transverse dams
                    regenerated in 2012   China Loess
                  plateau, vegetables grown on large terraces across
                  small fields economy
China Loess plateau, large terraces with transverse dams regenerated in 2012 [50] - China Loess plateau, vegetables grown on large terraces across small fields economy [51]

<<           >>

Share:

Facebook









Sources
[web01] Australia: Deep green agriculture: https://deepgreenpermaculture.com/diy-instructions/starting-your-permaculture-garden/
[web02] Compost barrel with holes in a garden bed: https://www.pinterest.de/pin/364087951111432667/
[web03] Raised bed filling layers: https://www.haus.de/garten/hochbeet-befuellen-diese-schichten-steigern-den-ernte-erfolg
[web04] Raised bed at CIA-Wikipedia: https://de.wikipedia.org/wiki/Hügelbeet
[web05] Facebook: https://www.facebook.com/anja.manne.9 sent on Sep.15, 2020


Photo sources
[1] Garden beds, raised beds in all forms: https://www.pinterest.de/pin/49680402118586505/
[2] Raised bed in U form: https://www.pinterest.de/pin/AeWH0k3NBLFxVgv9bdz1UX6eIVtouX-Dz96AqHyO00NZ3FWpa4r5f5Q/
[3] Raised bed in double U, M-shape: https://www.pinterest.de/pin/AdtfBbS6YlkkJl6G0vm7pA3L8y1viPiPBH9u0el2ltw1AK3FzH12Zes/
[4] Square cultivation zone with raised beds with 4 triangles and 4 oblong rectangles on the edge: https://www.pinterest.de/pin/730990583244134455/
[5] Raised bed in U-shape still undeveloped: https://www.pinterest.de/pin/256705247496869928/
[6] U-shaped raised bed with protective net: https://www.pinterest.de/pin/256705247496869928/
[7] U-shaped raised bed with integrated, perforated compost bin: https://www.pinterest.de/pin/364087951111432667/
[8] Cultivation zone forming a pentagon with a hexagon in the center: https://www.pinterest.de/pin/346003183852507444/
[9] Round beds with wicker: https://www.pinterest.de/pin/81627811981719489/
[10] Raised beds forming 4 triangles: https://www.pinterest.de/pin/620863498606256743/

[11] Rectangular garden beds: https://www.pinterest.de/pin/93027548528582858/
[12] Herb garden spiral: https://www.pinterest.de/pin/542472717597905199/
[13] Raised beds of wood, stone, metal, brick:
https://www.pinterest.de/pin/AVCzqR_mebyOshpXdmVJuGbVs8AJcYEqLuv0nS7x4hMrr0O6UqhJGXw/
[14] Pallet vegetable beds: https://www.pinterest.de/pin/864339353460791165/
[15] Raised rectangular bed with "entrance": https://www.pinterest.de/pin/854065516810817643/
[16] Raised beds: rectangle with 4 Ms: https://www.pinterest.de/pin/483644447465454618/
[17] U-shaped raised bed with door and windscreen: https://www.pinterest.de/pin/17381148541755184/
[18] Raised bed with natural border: tree trunk, braid, boards: https://www.pinterest.de/pin/317011261260477112/
[19] Raised bed filling with rake: https://www.pinterest.de/pin/519602875753144481/
[20] Long raised beds waist high: https://www.pinterest.de/pin/432486370453479224/

[21] Gardens in the form of mandala, mill game, board games etc .: https://www.pinterest.de/pin/447897125414954249/
[22] Garden in the form of a mandala garden with raised beds in the form of rhomboids and triangles: https://www.pinterest.de/pin/550916966891401462/
[23] Raised bed pyramid: https://www.pinterest.de/pin/565131453237195790/
[29] Raised beds with tree trunks: https://www.pinterest.de/pin/150589181275073389/
[25] Raised bed, the layer filling 01 (lasagna stratification): https://www.pinterest.de/pin/109704940892843442/
[26] Raised bed, the layer filling 02: https://www.pinterest.de/pin/718605684262142391/
[27] Raised bed, the layer filling 03, scheme: https://www.haus.de/garten/hochbeet-befuellen-diese-schichten-steigern-den-ernte-erfolg
[28] Raised beds in a step-L: https://www.pinterest.de/pin/230668812390599912/
[29] Raised bed, the layer filling 04: https://www.pinterest.de/pin/823877325557523335/
[30] Raised bed, the layer filling 05:
http://m.schoener-wohnen.de/bauen/garten-und-terrasse/213616-so-funktioniert-ein-hochbeet.html?utm_source=nl&utm_medium=email&utm_campaign=sww

[31] Wavy raised bed undulating: https://www.pinterest.de/pin/801429696160107118/
[32] Raised bed, the layer filling 06: https://www.pinterest.de/pin/622693085947920086/
[33] Raised bed with greenhouse cover: https://www.pinterest.de/pin/100416266670110124/
[34] Cultivation area with raised beds, in the center a six-star: https://www.pinterest.de/pin/637329784744926372/
[35] Raised bed with pallets, pallet high bed: https://www.pinterest.de/pin/627196685575500989/
[36] Raised bed with pallets, pallet high bed under construction: https://www.pinterest.de/pin/635007616183471753/
[37] Raised bed in a circle with different sized circles small, medium, large: https://www.pinterest.de/pin/566116615656209757/
[38] Permaculture garden, planting beds in waves: https://www.pinterest.de/pin/798333471422217308/
[39] Hillbed 01: https://www.pinterest.de/pin/342766221625942931/
[40] Hillbed 02: https://www.pinterest.de/pin/348254983681513774/

[41] Stratification (layering) of the permaculture hillbed 01, scheme: https://www.pinterest.de/pin/685180530783032598/
[42] Stratification (layering) of the permaculture hillbed 02: https://www.pinterest.de/pin/74942781278034076/
[43] Stratification (layering) of the permaculture hillbed 03: https://www.pinterest.de/pin/487866572112059521/
[44] Stratification (layering) of the permaculture hillbed 04: https://www.pinterest.de/pin/494833077788780895/
[45] Permaculture dam: https://www.pinterest.de/pin/227783693627871080/
[46] Permaculture, the flow of water on the hillside with a channel between the hills or terracing:
https://www.pinterest.de/pin/432345632958302046/
[47] Permaculture hillside beds end in mandala circle: https://www.pinterest.de/pin/161425967880668312/
[48-51] Video: Regreening the desert with John D. Liu - Docu - 2012: https://www.youtube.com/watch?v=IDgDWbQtlKI&t=2490s

[99] Hillbeds side by side as ray mandala on the permaculture farm of Le Bec Hellouin, France:
Video: DOKU - Unsere Landwirtschaft tötet Insekten und vergiftet das Wasser - https://www.youtube.com/watch?v=CXl71o8MrOQ (31'1'')

[100-101] Medical herbs garden of Munster University (Germany) with garden beds imitating human organs:
Facebook: https://www.facebook.com/freimaurer.iserlohn/?ref=br_rs

Facebook: https://www.facebook.com/anja.manne.9 sent on Sep.15, 2020

[web01] https://de.wikipedia.org/wiki/Permakultur
[web02] Projekt 63 in Möhlin: http://www.gemeinschaften.ch/jodir/index.php/gemeinschaftsprojekte-mainmenu-38/635-projekt-63-moehlin-ag-lebensgemeinschaft-auf-dem-bauernhof-permakultur-solidarische-landwirtschaft-rvl-csa
[web03] http://www.agenda21-treffpunkt.de/archiv/03/11/SeppHolzer.htm
[web04] https://www.amazon.de/Agrar-Rebell-Sepp-Holzer/dp/3702009701/ref=sr_1_1?s=books&ie=UTF8&qid=1538588625&sr=1-1&keywords=agrar-rebell
[web05] http://www.krameterhof.at/cms60/index.php?id=5
[web06] https://www.amazon.de/Agrar-Rebell-Sepp-Holzer/product-reviews/3702009701/ref=cm_cr_dp_d_show_all_btm?ie=UTF8&reviewerType=all_reviews
[web07] https://www.amazon.de/Agrar-Rebell-Sepp-Holzer/product-reviews/3702009701/ref=cm_cr_arp_d_paging_btm_2?ie=UTF8&reviewerType=all_reviews&pageNumber=2
[web08] https://www.amazon.de/Agrar-Rebell-Sepp-Holzer/product-reviews/3702009701/ref=cm_cr_getr_d_paging_btm_3?ie=UTF8&reviewerType=all_reviews&pageNumber=3
[web09] http://eulenhof-moehlin.ch/wp/
[web10] https://zaytunafarm.com/about-us/

[web11] https://store.holmgren.com.au/product/melliodora/
[web12] https://holmgren.com.au/melliodora/tours/
[web13] https://en.wikipedia.org/wiki/David_Holmgren
[web14] https://en.wikipedia.org/wiki/Rob_Hopkins
[web15] https://www.thehollies.ie/
[web16] https://www.thehollies.ie/horsepower-at-the-hollies/
[web17] https://de.wikipedia.org/wiki/Masanobu_Fukuoka
[web18] https://en.wikipedia.org/wiki/Masanobu_Fukuoka
[web19] http://www.permaculture.com/node/140
[web20] Andy Hamilton: The Ecologist: Growing without water: how to garden in a drought:
https://theecologist.org/2010/jul/27/growing-without-water-how-garden-drought

[web21] Bäume mit Katheter: https://www.bauexpertenforum.de/threads/baeume-mit-katheter.43621/
[web22] Permaculture News: https://permaculturenews.org/2011/08/19/summer-permaculture-tips-and-tricks/
[web23] 6 Tips For Backyard Permaculture: https://www.hobbyfarms.com/6-tips-for-backyard-permaculture/
[web24[ https://permaculturenews.org/2011/04/11/spring-permaculture-tips-and-tricks/
[web25] Flo Scott: https://www.permaculture.co.uk/readers-solutions/9-tips-increasing-your-yields

[web27] Phoenix ("USA"): 5 Tips for Gardening: https://www.phoenixnewtimes.com/restaurants/five-permaculture-tips-for-gardening-in-metro-phoenix-6504536
[web28] Masanobu Fukuoka: Natural Farming: http://www.finalstraw.org/masanobu-fukuoka-and-natural-farming/
[web29] Bill Mollison: https://de.wikipedia.org/wiki/Bill_Mollison
[web30] Belebtes Wasser: https://www.grander.com/international/einsatz-anwendung/garten-teich

[web31] Permakultur, der Wasserfluss am Hügelbeet mit Kanal zwischen den Hügelbeeten oder Terrassierung:
https://www.pinterest.de/pin/432345632958302046/
[web32] Video: Hügelbeet bauen - Hugelculture (Sepp Holzer Style) (3'25''):
https://www.youtube.com/watch?v=1KafYj_AcVs&t=30s - YouTube-Kanal: TrilightShowroom
[web33] Video: Hügelbeet anlegen im Garten (8'56''): https://www.youtube.com/watch?v=_-egIPX6AjU&t=15s  - YouTube-Kanal: Bio-Garten Reich
[web34] Auf einem Permakultur-Hügelbeet wächst pro Jahr 3 bis 4x mehr Gemüse pro m2 als auf konventionellen Feldern der Maschinen-Pestizid-Landwirtschaft: Video: DOKU - Unsere Landwirtschaft tötet Insekten und vergiftet das Wasser:  https://www.youtube.com/watch?v=CXl71o8MrOQ (31'0''-31'20'')
[web35] Ertrag von 50 Euro pro m2 pro Jahr:
Video: DOKU - Unsere Landwirtschaft tötet Insekten und vergiftet das Wasser:
https://www.youtube.com/watch?v=CXl71o8MrOQ
(30'35''-30'48'').

[web36] https://www.biogartenreich.de/rund-ums-gärtnern/bau-eines-hügelbeets/
[web37] https://www.wurzelwerk.net/2018/03/22/fruchtfolge-gemuesegarten-starkzehrer-mittelzehrer-schwachzehrer/
[web38] https://www.wurzelwerk.net/2018/02/28/anbauplan-erstellen-gemuesegarten/
[web39] https://www.wurzelwerk.net/2017/12/20/mischkultur-anbauplan/

^
